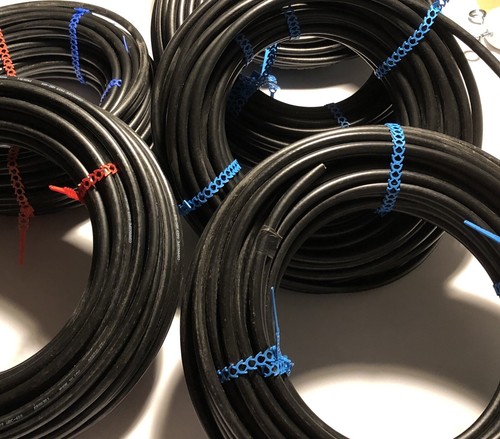

100’ Commscope WBC-400 Coax Cable 50 Ohm Braided SOLID CENTER. Compare LMR400 - $70 - (Plainfield, CT)

100’ Commscope WBC-400 Coax Cable 50 Ohm Braided SOLID CENTER. Compare to LMR400. Condition is New old stock. Shipped with USPS Priority Mail. WBC-400 Product Classification Brand CNT® Product Series WBC-400 Product Type Braided coaxial cable Construction Materials Jacket Color Black Jacket Material PE Braid Material Tinned copper Shield Tape Material Aluminum Dielectric Material Foam PE Inner Conductor Material Copper-clad aluminum wire Dimensions Cable Weight 0.10 kg/m Diameter Over Dielectric 7.240 mm | 0.285 in Diameter Over Jacket 10.290 mm | 0.405 in Inner Conductor OD 2.7400 mm | 0.1079 in Nominal Size 0.400 in Outer Conductor OD 7.390 mm | 0.291 in Electrical Specifications Cable Impedance 50 ohm Capacitance 78.4 pF/m | 23.9 pF/ft dc Resistance, Inner Conductor 4.330 ohms/km dc Resistance, Outer Conductor 6.890 ohms/km dc Test Voltage 2500 V Jacket Spark Test Voltage (rms) 4000 V Maximum Frequency 16.20 GHz Operating Frequency Band 30 – 6000 MHz Peak Power 16.0 kW Velocity 85% Environmental Specifications Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F) General Specifications Cable Type WBC-400 Braid Coverage 90% braid Packaging

Posted in Plainfield, CT, Electronics
From ebay.com - 1 month ago
