Motorola Hitachi 6800 6802 6808 MOS 6502 65C02 6801 6803 CPU Test Board System - $300 - (Klamath Falls, OR)

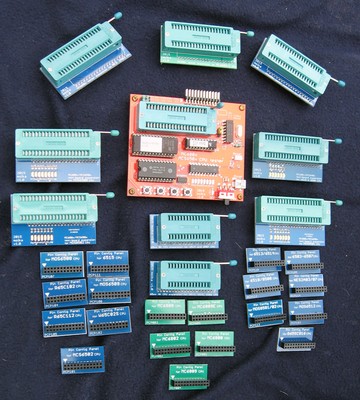

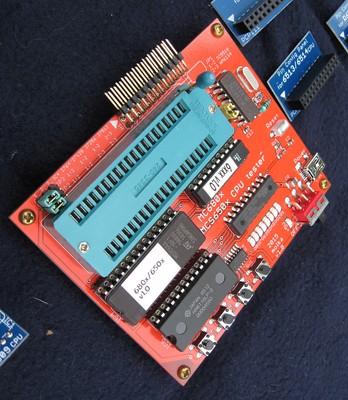

Both the Motorola MC6800 and MOS MCS6502 (which had a very similar design) have spawned many dozens of additional processors/microcontrollers that differ in pin out, features, process (CMOS/NMOS) speed, on board memory and other things, yet retain the same basic 6800 or 6502 architecture. Thus it made sense to make a single test system to handle as many of these CPU/MCU's as possible.This is made possible in a way similar to the MCS-80 test systems that allowed expansions for the Z80/NSC800 and 8085. The 680x/650x board uses expansion boards, as well as a new feature called the PCP (Pin Configuration Panel). The PCP handles differences in pin-puts for the various chips to be tested and configures the base system to know which chip is being used. The expansions boards handle anything else, as well as providing LEDs for additional testing of some chips.A complete 680x/650x Test system includes the base system board, 20 PCP's and 10 different expansions.Now included is an expansion for Motorola/Hitachi/Fujitsu and other 6801 and 6803 MCU's as well as updated firmware to support testing theseThis allows the system to test the following IC's:6800 Family (NMOS, any speed/manufacturer)6502 Family (and manufacture/speed)6800 6801 6803 6802 6808 6809/E6502/65C02 NMOS/CMOS 65C02S 6503/04/05/06/07/08/09 6510 (as used in Commodores) 6512/65SC12 6513/14/15 65C102/65SC102 65C112/65SC112 65SC802 65C816/65SC816 8500/8501/7501 (as used by Commodore) Ricoh 2A03/2A07 Nintendo CPUThat covers over 30 difference CPUs/MCUs on a single system. Future expansions are of course possible, with support for more Motorola MCUs such as the 6805 family in planning.The board consists of the base components of a MC680x/MCS650x system:• 40-pin ZIF socket – for the tested CPU – provides easy replacement of the CPUs. • Clock generator with 4MHz crystal oscillator for generating 1, 2 or 4MHz system clock of the CPU. • 2K x 8bit (HM6116/TC5516) static RAM for variable and stack area. • 8K x…
