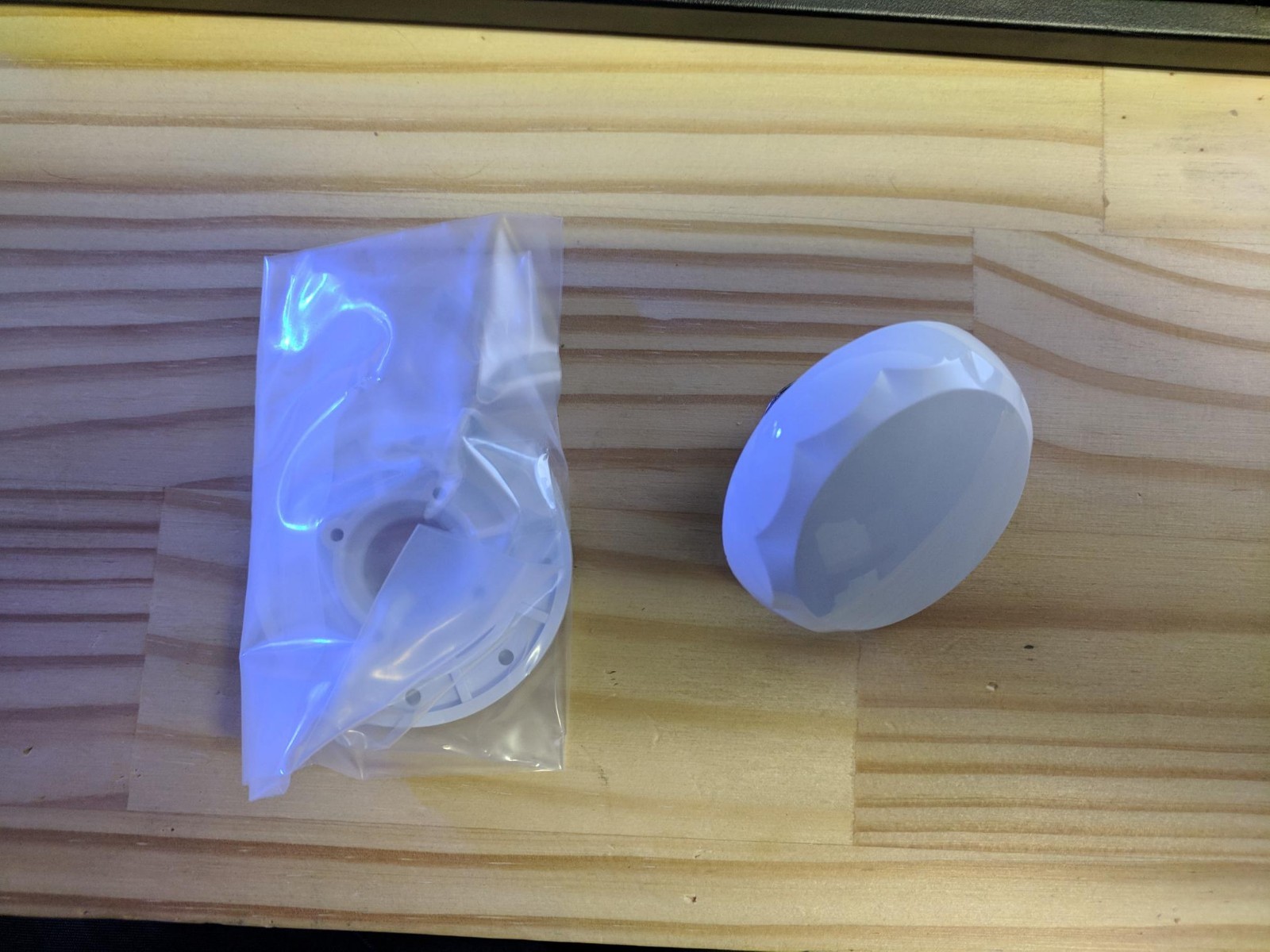

RV-16 GPS Antenna - $9 - (Wallops Island, VA)
Physical Constructions:Constructions:Polycarbonate radome,detachable cable/connector for easy mount, rubber-O-ring between top radome and screw base for waterproofDimensions:60mm in diameter x 38mm in height.Weight:125grams (w/o cable & connector).Color:Standard in ivory white, other colours available upon request.Mounting:Bulkhead mount with 0.8 inch threaded wing nut (standard acessory).Cable & Connector:RF cable:5 meter RG174/U (standard) other length (optional)Pulling strength:6 Kg @ 5sec. molded plastic on connector end for strain relief.Connector available:BNC,TNC,GT5,MCX(OSX),SMA,SMB or SMC. Straight or right angle.Optional:Universal Connector Adapter (FME to TNC/BNC/SMA/SMB/MCX)Antenna Element:Center Frequency:1575.42 MHz +/-1.023 MHzPolarization:R.H.C.P. (Right Handed Circular Polarization).Absolute Gain @ Zenith:+5 dBi typical.Gain @ 10° Elevation:-1 dBi typical.Axial Ratio:3 dB max.Output VSWR:1.5:1 max.Output Impedance:50 ohmLow Noise Amplifier:Center Frequency:1575.42 MHzPower Gain:31 dB typicalBandwidth:2 MHz min.Noise Figure:1.5 max.Outer Band Attenuation:20 dB min. @ Fo +/-50 MHz.Supply Voltages:4.5~5.5V DC.Current Consumption:28mA +/- 3mA.VSWR:2.0max.Output Impedance:50 ohmOverall Performance: (antenna element, LNA & coax cable)Center Frequency:1575.42 MHz.Gain:27 dB typicalNoise Figure:2.0 dB max.Axial Ratio:3 dB max.Bandwidth:2MHz min.VSWR:2.0 max.Output Impedance:50 ohmEnviromental Condition:Operating Temperature:-40°C~ +85°C.Storage Temperature:-40°C~ +85°C.Relative Humidity:95% non-condensing.Water Resistance:100% waterproof.Does Not Come With RF Cable!
