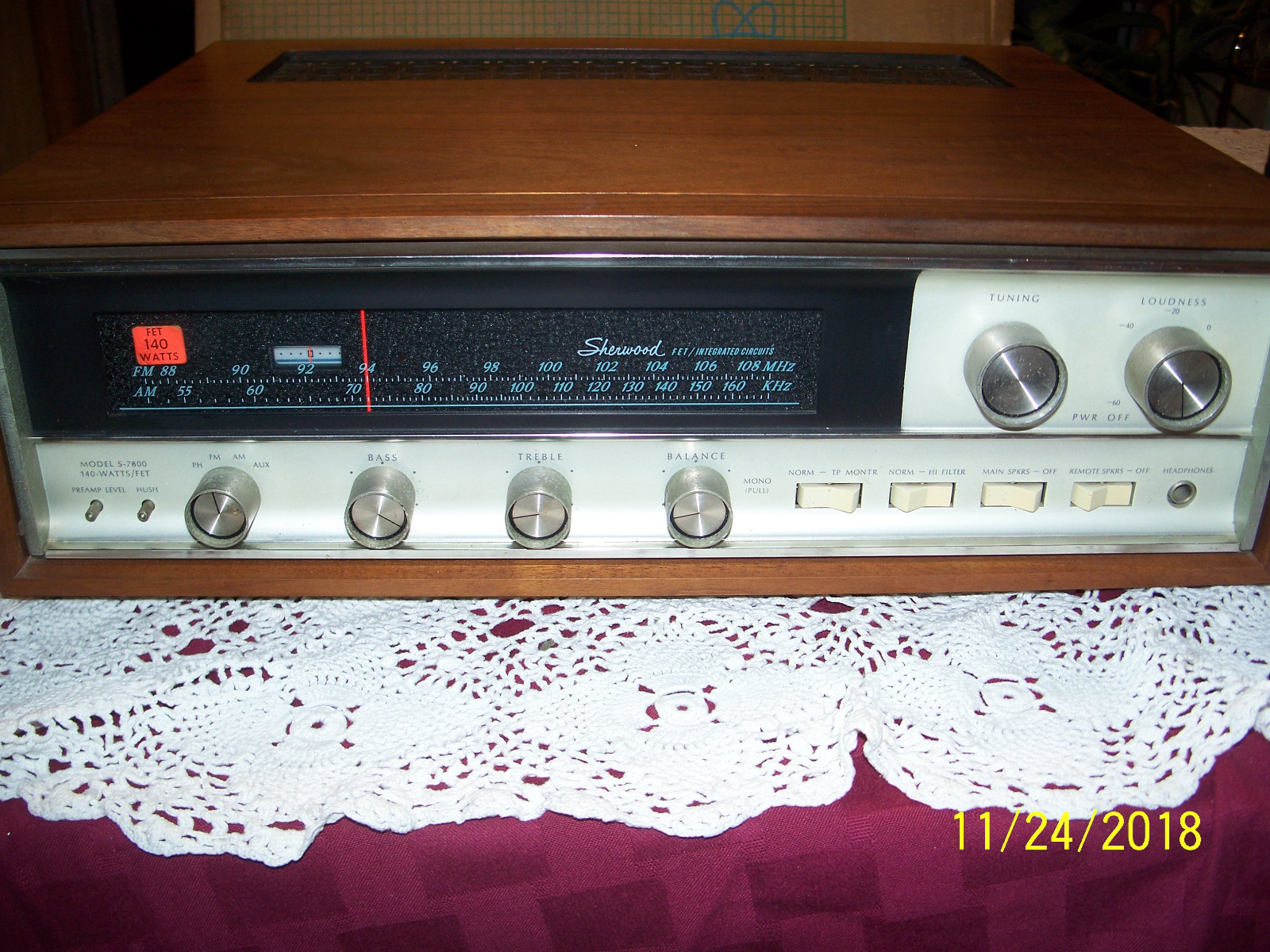

1960's Sherwood S-7800 140 Watt AM-FM Stereo Receiver With FET And Microcircuits - $350 - (Post Falls, ID)
1960's Sherwood S-7800 140 Watt AM-FM Stereo Receiver With FET And Microcircuits Thanks For Looking Works great and comes with only with what you see in the pictures and it has some wear marks and scratches. Please look at all the pictures. The box is all tore up and bad shape. The receiver is in very nice condition and sounds great. Model S-7800 140 Watt AM-FM Stereo Receiver with Microcircuits and Field Effect Transistors Featuring: Monolithic Microcircuits 140 watts Music Power FET RF and Mixer Stages Symmetrical differential FM limiter Low-distortion FM detector DC Coupled All Silicon Power Amplifiers Mono (center-channel) Output Terminals FM Sensitivity (IHF): 1,8 µV for -30 dB (noise and distortion below 100% mod.) Typical Sensitivity FM: 0,95 µV for 20 dB quieting. 5.0 µV for 50 dB S/N Typical Selectivity FM : 250 kHz at -6 dB; 820 kHz at -60 dB AM : 4 kHz at -6 dB FM Ratio Detector: 800 kHz (peak/peak) Capture Ratio: 2,0 dB FM Tuning Range: 87,5 - 108,5 MHz AM Tuning Range: 530 - 1650 kHz Distortion: less than 0,15% Hum and Noise Level FM: 70 dB below 100% mod. AM: 56 dB below 100% mod. FM Crossmodulation Rejection: -95 dB AM Rejection (on FM): -55 dB FM Stability: ±10 kHz (±.01%) Record Output: 1 volts at 100% FM FM Oscillator Radiation: 3 dB below FCC stds. Antennas FM: 300 O balanced AM: Directable ferrite rod w/external antenna connection Frequency Response: FM Mono : 20 - 20,000 Hz (± ½ dB) FM Stereo : 20 -15,000 Hz (± ½ dB) AM : -6 dB at 4,0 kHz Amplifier : 20 - 20,000 Hz (± ½ dB) Inputs: 2 High Level; 2 (RIAA) Phono-preamp; 2 tape monitor Power Output: Music Power : 140 watts at 4 O; 100 watts at 8 O Continuous Power (each channel) : 60 watts at 4 O; 40 watts at 8 O at 0,6% distortion Outputs: 4 to 16 O left and right speaker main and remote, stereo headphone and record output Inverse Feedback: 50 dB Damping Factor: 40 : 1 at 8 O Tone Control Response: Flat Setting 20 Hz to 20 kHz ±1 dB Tone Control Range: 15 kHz, 15 dB, boost or cut, 4…
