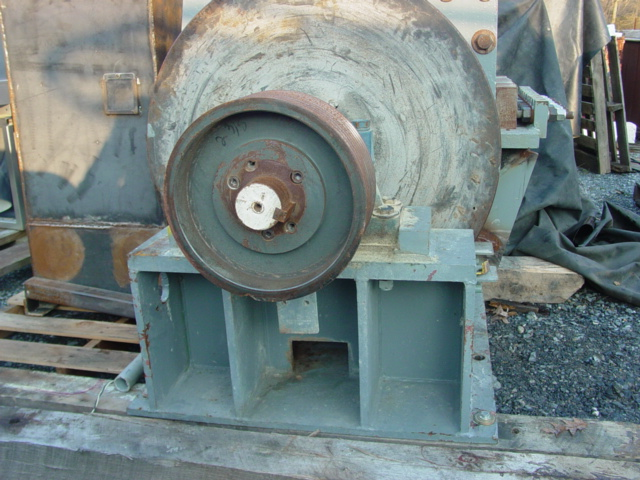

Montgomery 18-HD Punch & Die Hog - T3 Cut - $16,975 - (Elizabethtown, PA)

Montgomery 18-HD Punch & Die Hog - T3 Cut WEG 100 HP TEFC Motor, Model: 10018EP3EBB405T Type: ET, PF: 0.87, IP55, 208-230/460V, 60 Hz, 3PH. 1775 RPM, Cont. Duty, Frame: 404/5T, Motor Weight Only: 1117 lbs. The Punch and Die System provides a two-stage grind in a single machine. The first grind occurs when a set of rotating teeth (hammers) punch material through a series rectangular pockets formed by stationary dies (anvils). The teeth are secured to a spinning rotor assembly. The anvils are fixed to the side of the machine. The anvils can be adjusted when the machine is not running in order to set the proper tooth-anvil clearance for optimum hogging. A pattern of high and low teeth with large and small anvils keeps material moving with nowhere to hide, allowing the hog to rapidly process material with relentless efficiency. The T3 cut employs two inch wide cutting teeth grinding against two inch wide stationary anvils. The second grind occurs after the material has been processed past the anvils and directed downward across a curved sizing screen. The screen openings can be made of various shapes and sizes to customize the end product. Steel bars (baffles) are typically added on larger sized holes to control the length of material that is allowed to get through. Baffles can be applied in varying configurations in order to optimize throughput while avoiding unwanted sticks and slivers that can clog pipes, jam screw conveyors, reduce boiler efficiency or degrade the salability of mulch. The screens are designed for easy removal and replacement. Typical applications include: veneer roundup, polyurethane scrap, plywood, paper, gypsum, particleboard, bark, slabs and logs up to 90 pounds. The HD series uses HD-GM rings with an 18-3/4” cutting circle and a steel flywheel for added momentum to power through momentary surge loads. The rings can be hardsurfaced to extend their economic life in abrasive applications. Payment Terms: Bank Wire Only, No PayPal.

Montgomery 18-HD Punch & Die Hog - T3 Cut
Montgomery 18-HD Punch & Die Hog - T3 Cut
Montgomery 18-HD Punch & Die Hog - T3 Cut
Montgomery 18-HD Punch & Die Hog - T3 Cut
Montgomery 18-HD Punch & Die Hog - T3 Cut
