8-Stage TTX Stainless Steel / Carbon Pretreatment Washer - $175,000 - (Berlin, WI)

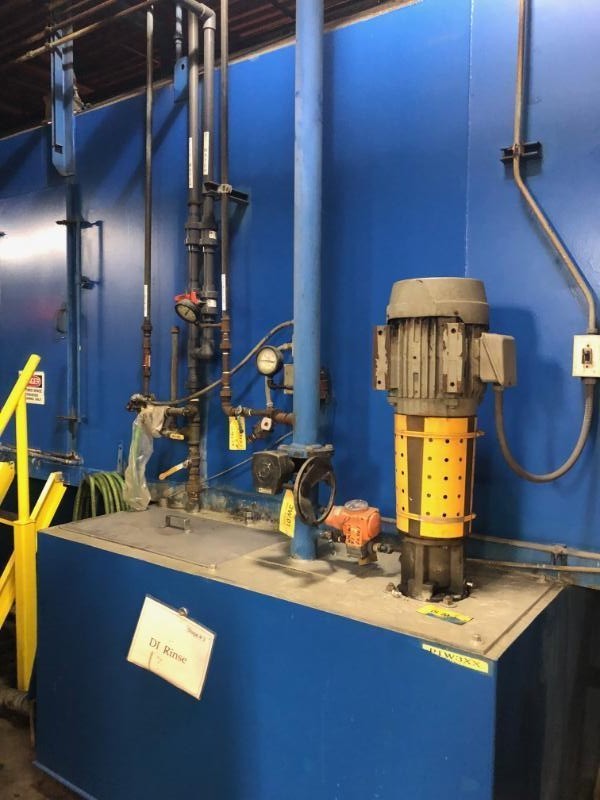

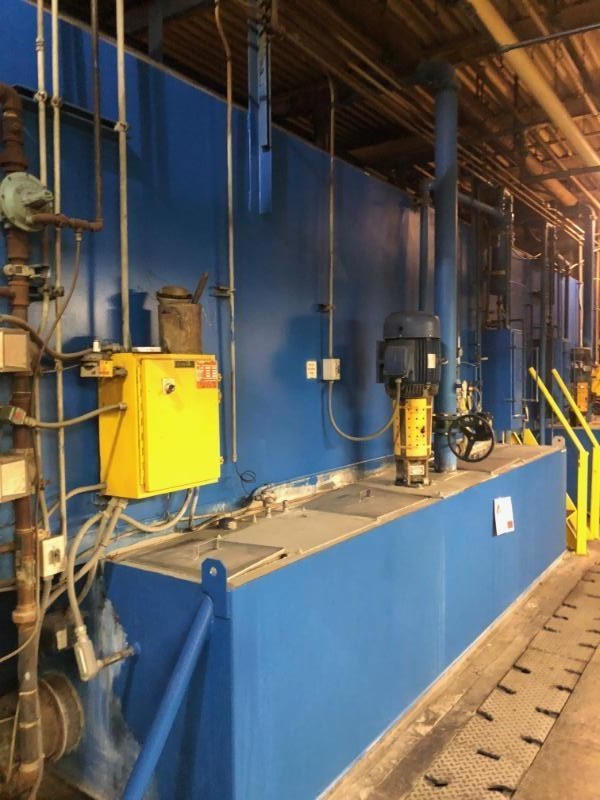

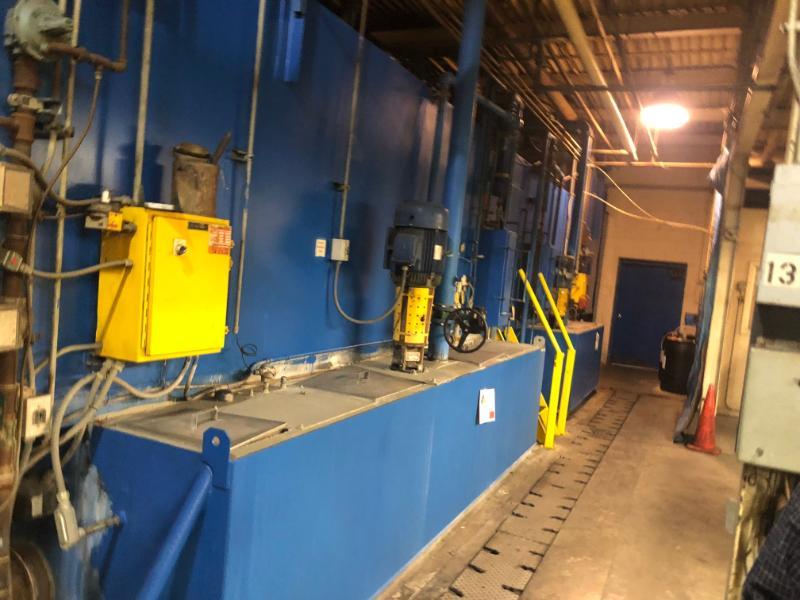

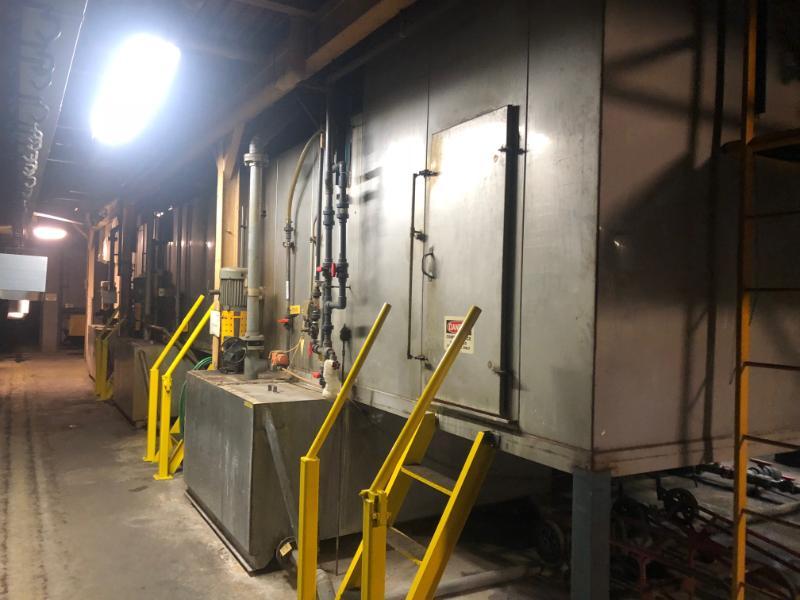

W161: 8-Stage TTX Stainless Steel / Carbon Pretreatment Washer Design: 3’-8” w x 6’-0” h Opening, 10 FPM Design Specifications: Manufacturer: Therma Tron-x, Part Opening: 3’-8” W x 6’-0” H (can be made larger) Design Line Speed 10 FPM (Variable Speed Control) Location: Berlin, WI 54923 Dimensions: 12’-0” High x 16’-4” Wide x 85’-0” Long (Can modify) Process Stage Length Time (Sec.) Temp Risers Sets (12” O.C.) Nozzles (14 / set) GPM/HP Entrance 6’ Stage 1 (Prewash) 5’ 30 <140° 6 84 V-Jet 482 / 10 hp Drain 9’ Stage 2 (Cleaner) 10’ 60 <160° 11 159 V-Jet 825 / 15 hp Drain 9’ Stage 3 (Rinse) 5’ 30 Ambient 6 84 V-Jet 353 / 7.5 hp Drain 9’ Stage 4 (Rinse) 5’ 30 Ambient 6 84 V-Jet 353 / 7.5 hp Drain 9’ Stage 5 (Zinc Phos.) 10’ 60 <160° 11 159 V-Jet 825 / 15 hp Drain 9’ Stage 6 (Rinse) 5’ 30 Ambient 6 84 V-Jet 294 / 7.5 hp Drain 9’ Stage 7 (Seal) 5’ 30 <120° 6 84 V-Jet 294 / 7.5 hp Drain 9’ Stage 8 (D.I. Rinse) 5’ 30 Ambient 6 84 V-Jet 294 / 7.5 hp Exit 6’ Total length 125’ - Current design is a U-Shape. The system may be modified to a straight line or other. - Gusher Pumps, CPVC and PVC Plumbing - Maxon Burners with Gas Trains on Seated Stages - Entrance and Exit Exhaust Fan - System Control Panel with Prints - Ships on Multiple Semi Trailers, AIS will load. - Item listed on 01/03/19 - AIS can provide modifications or refurbishments as needed. Normal 0 false false false EN-US X-NONE X-NONE American Industrial Sales, LLC.Berlin, WI 54923
