Johnford ST-100B-CF-Y Used CNC Lathe - $139,900 - (Sanford, FL)

Back to Search Results
Posted 1 month ago

CNCMachines.NetSupport Contact: 844.262.6789 Specifications for the 2006 Johnford ST-100B-CF-Y ID-2548:Swing Over Bed: 36.2”Swing Over Cross Slide: 27.6”Center Distance: 100”X Axis Travel: 14.6”Z Axis Travel: 94.5”Y Axis Travel: +/- 3”Rapid Rates (XYZ): 10/10/12Spindle Nose: A2-11Spindle Bore: 5.2”Bar Capacity: 4.6”Spindle Speed: 2000 RPMSpindle Motor: 50 HPSpindle Drive: 4 Speed GearboxTurret Tool Capacity: 12Tailstock Travel: 82.7”Tailstock Quill Travel: 5.9”Tailstock Taper: MT#7Bed Inclination: 60 DegreeMachine Dimensions: 308” x 98.6” x 114”Machine Weight: 37,000 LBS.Equipped with:Fanuc 18i-TB CNC18” 3-Jaw ChuckC Axis & Live ToolingY Axis Milling50 HP MotorManual Swingdown Toolsetter300 PSI CTSProgrammable Hydraulic TailstockChain Type Chip ConveyorAuto Lubrication SystemCoolant System480V Transformer

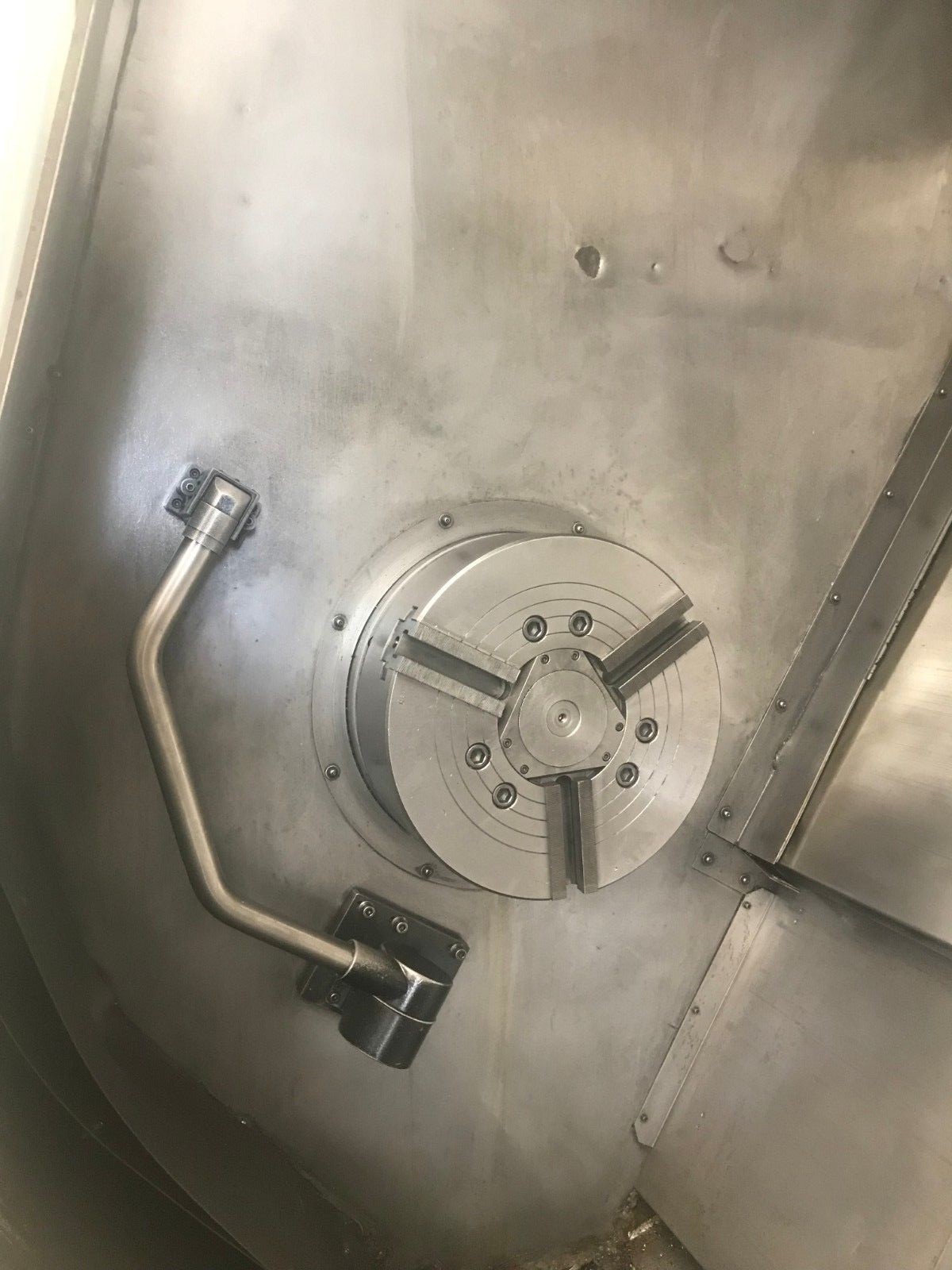

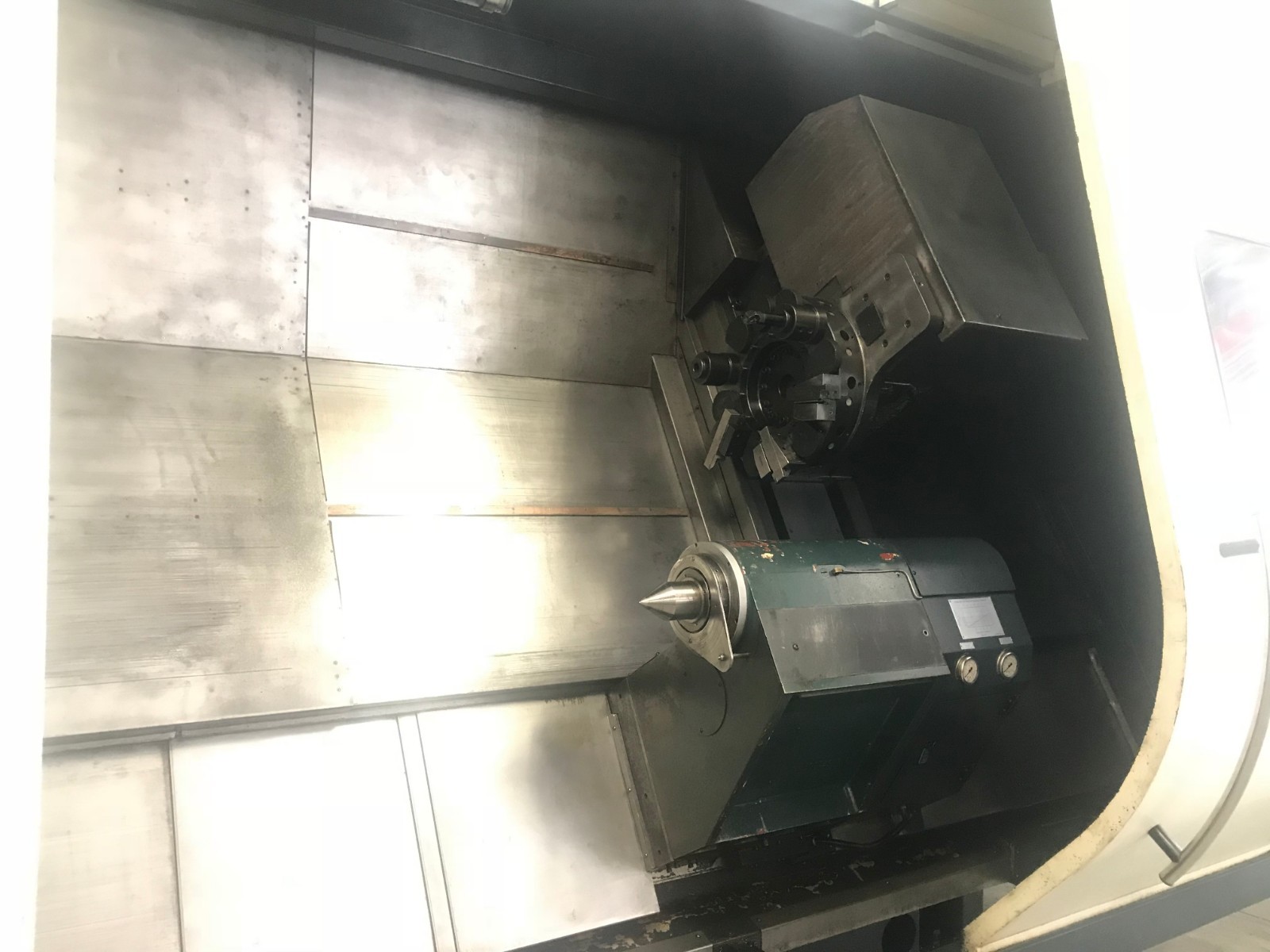

Johnford ST-100B-CF-Y Used CNC Lathe
Johnford ST-100B-CF-Y Used CNC Lathe
Johnford ST-100B-CF-Y Used CNC Lathe
Johnford ST-100B-CF-Y Used CNC Lathe
