NEW AH-130 Auto Horizontal Boring & Milling Machine - $279,400 - (Hacienda Heights, CA)

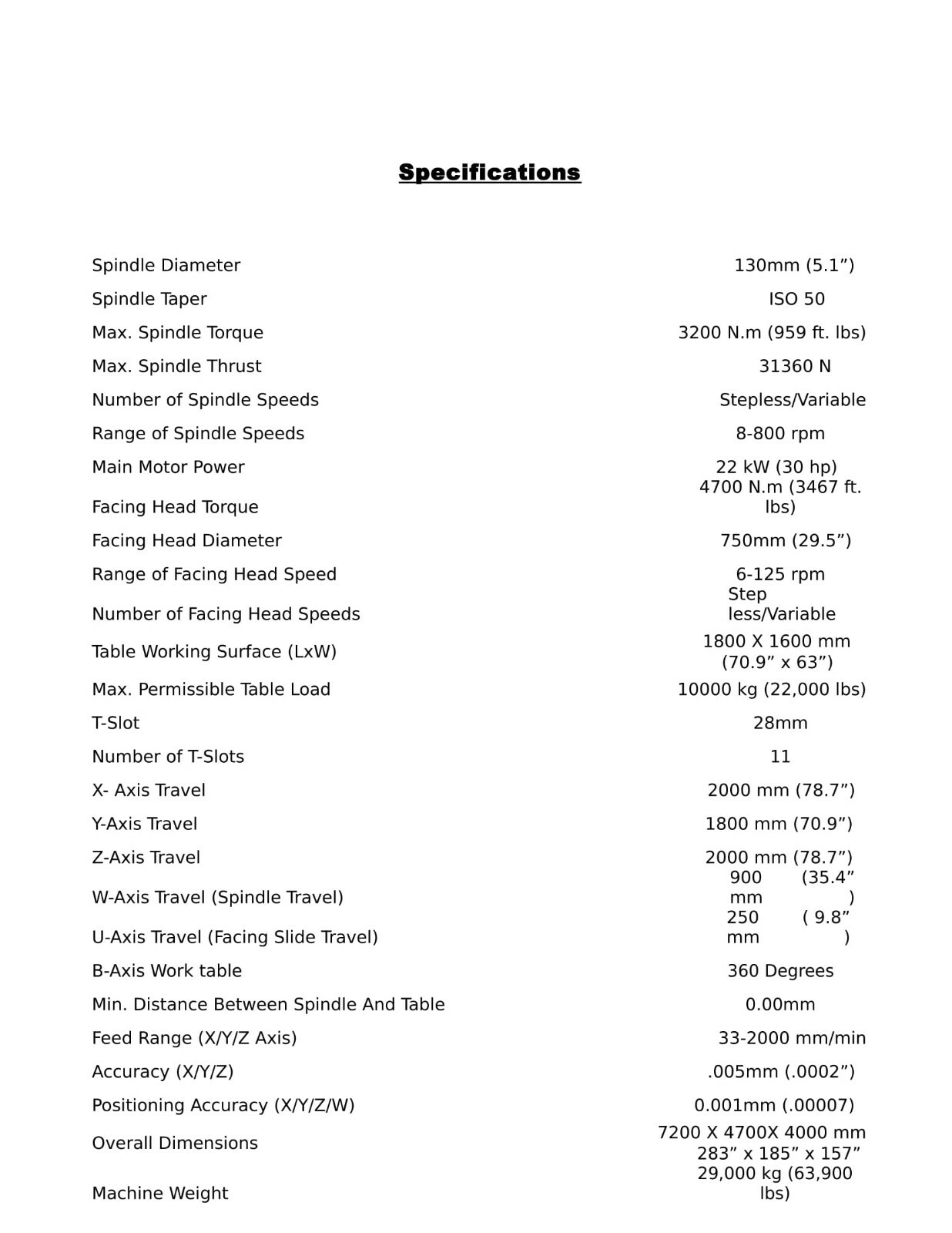

LOCATION: City of Industry, CA 91745 *See photos for more specifications, if inspection of exact machine is needed, please contact us directly* Features: -Construction: single column, spindle box at side of column, fixed face plated; table moves along guide ways on bed (longitudinal and latitude), bed has four parallel guide ways. -Movement: W, U, Y, Z, X, B axis’ are all controlled by one servo motor which is at the end of bed. -There is hydraulic interlock among each moveable axis. So only one axis can move at a time, others are locked. -Spindle is, supported by 3 points, to support improved accuracy, raised efficiency, excellent rigidity, and spindle accuracy.-Wide spindle speed range, servo motor two grades, 8-1100rpm, less gear in spindle box, spindle/face plate choose by touch panel, speed and speed grade changes are also by programmed, convenient than before. -Spindle taper is ISO 50 with auto clamp/unclamp of tools, -X,Y,Z axes feed, quick move, clamp/unclamp all control by eclectic and hydraulic system. -Table clamp use disc spring, hydraulic clamp/unclamp method -Guide way for bed and slide is covered by protection cover
