Class 1000 ISO 6 Modular Clean room 576 to 40K Sq feet ULPF MW Zander Grid HEPA - $8,750 - (Richmond, VA)

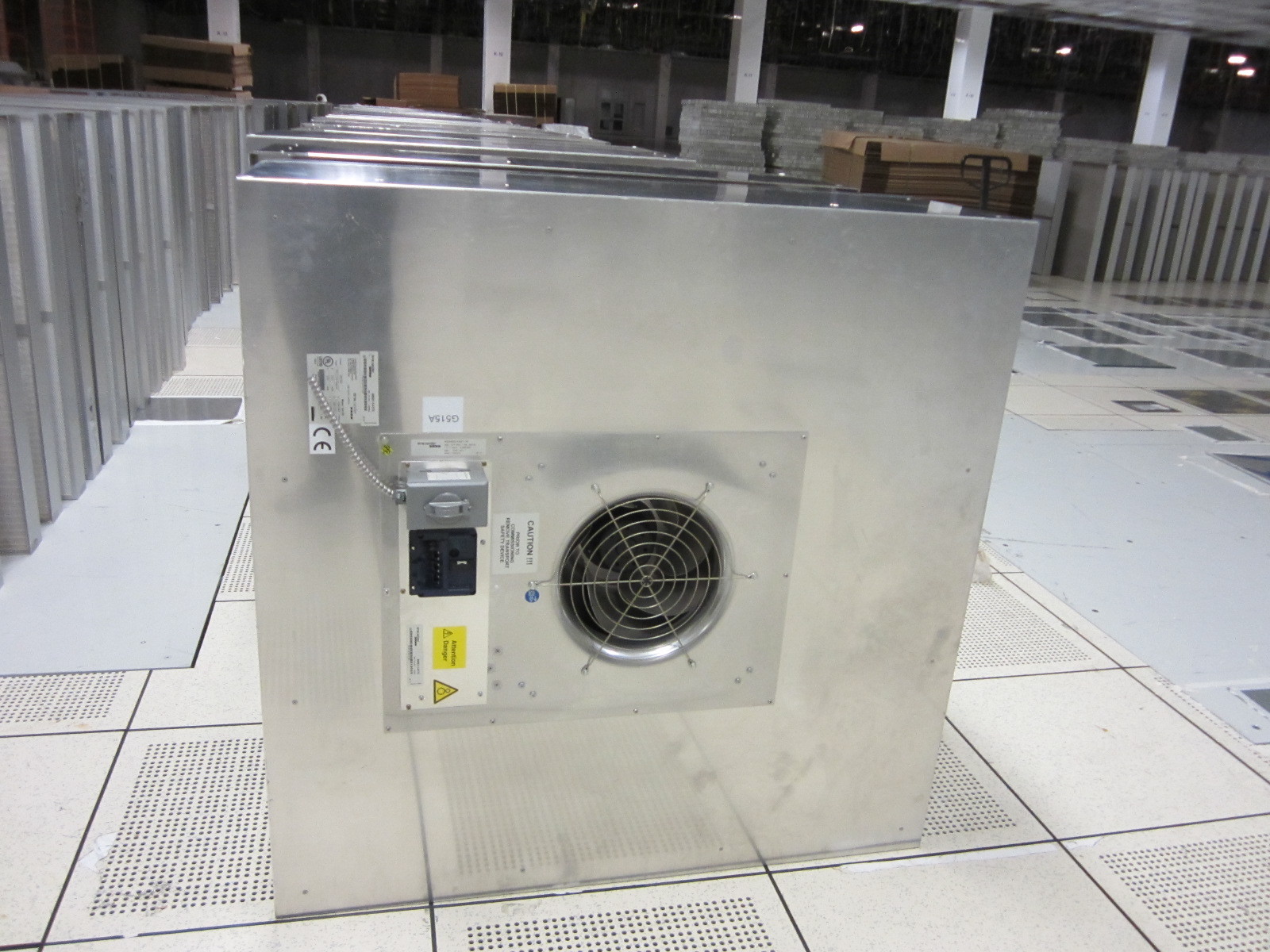

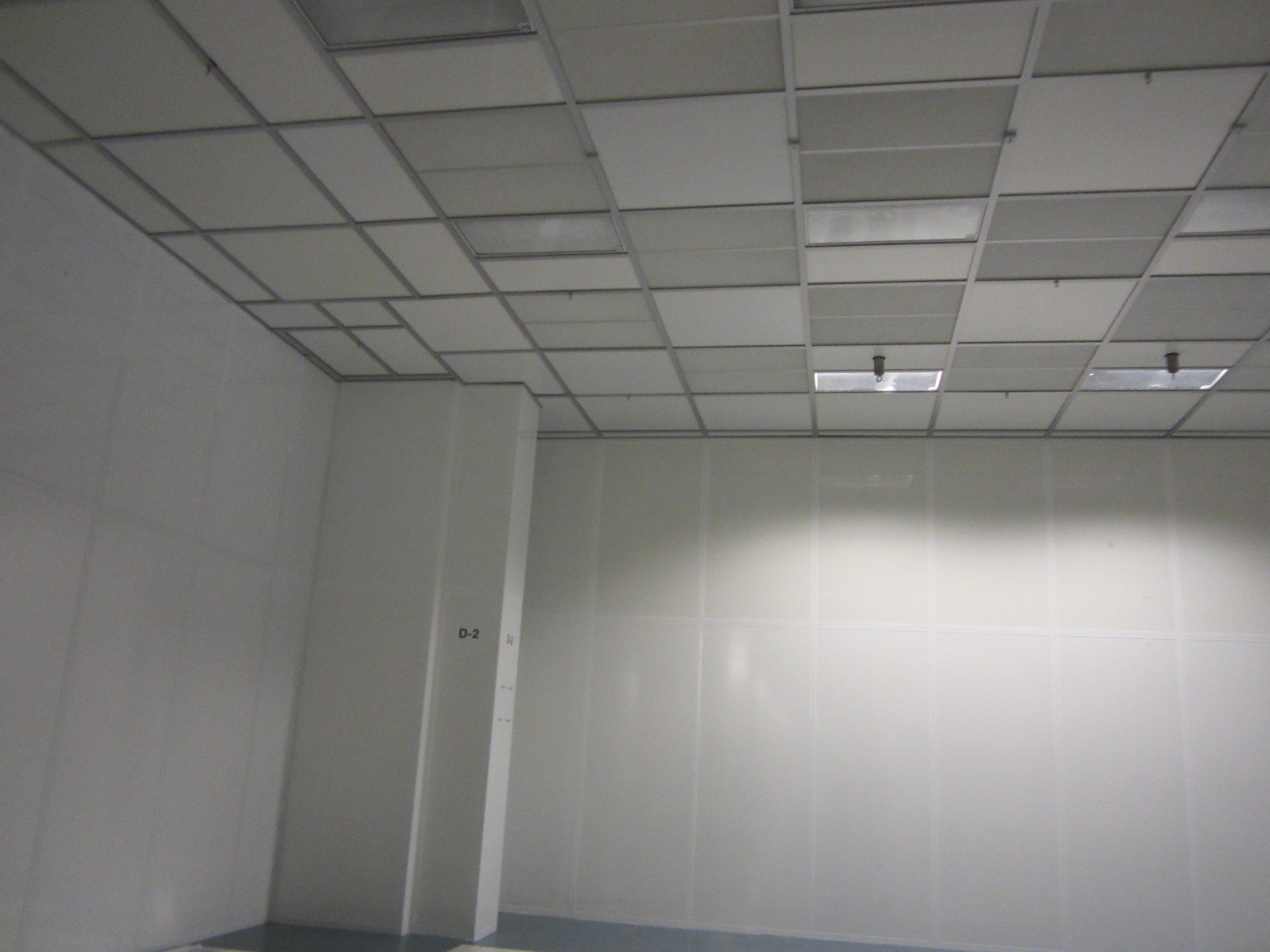

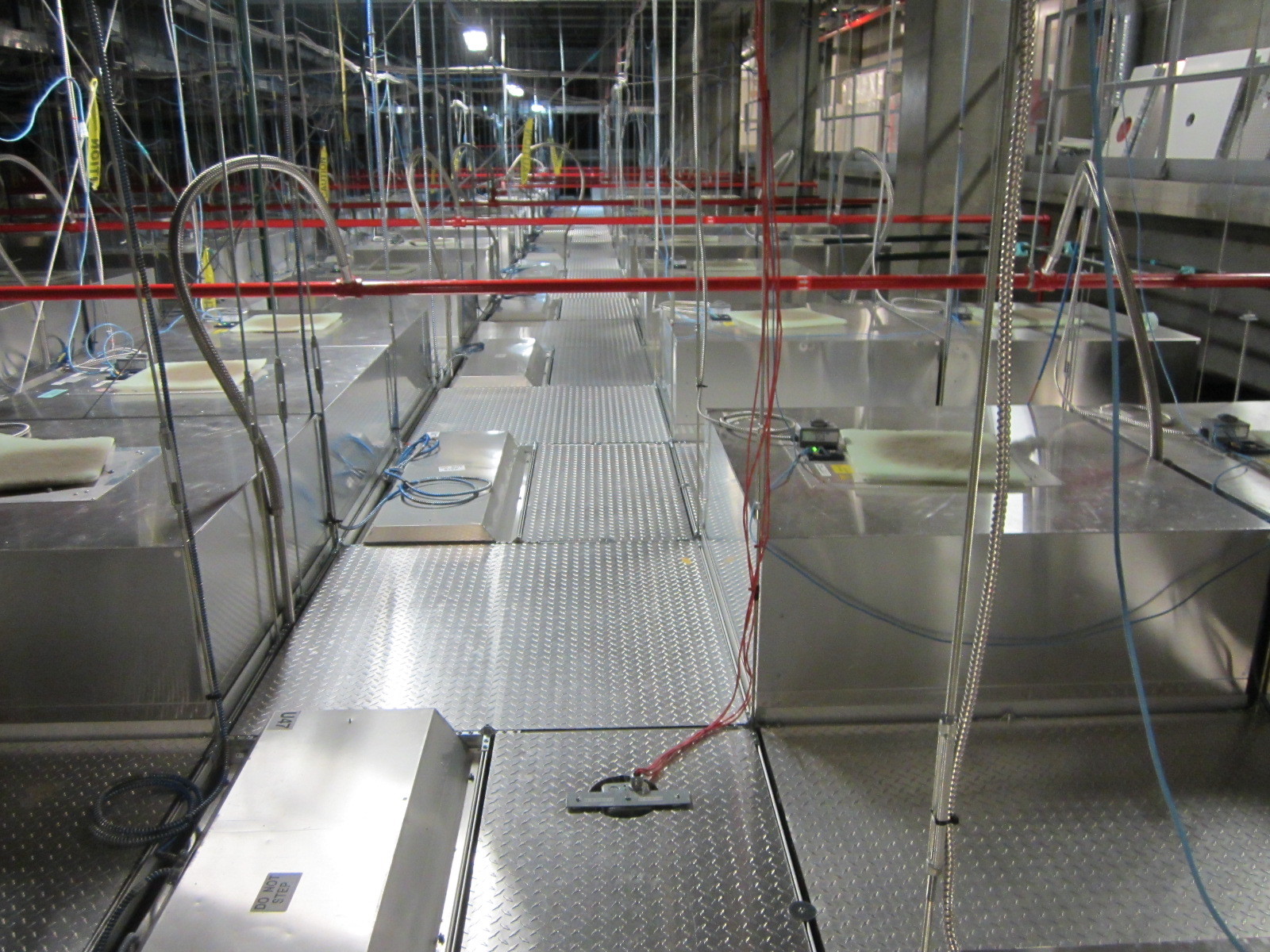

This is a 576 square foot (and we have 40,000 sf available) of class 1000 ISO 6 clean room. This room was built in 2005 and the fab shut down in 2008. The grid is based on a 4'x4' grid so a single kit can be configured into many different sizes but like 24'x24' or 12'x48' or many others on 4' boundaries. It can also be expanded by buying a custom built kit or multiples of this kit to any size up to the 40,000 square feet of material we have in stock. This room can be configured for class 1 to class 1000 performance actually we can configure to 10,000 as well but that would be way below the capabilities of this equipment. This listing is for 576 Square foot increments (configured for class 1000 performance) of the complete grid system including all of the following assets: Class 1000 Item Quantity MW Zander 4x4 FFUs model number 60051-1-0173 which are good for 208-277 vac and have built in variable frequency drives in each fan that are controlled over the RS-485 interface note attached pictures. 9 Camfil Megalam Ultra Low Penetration Filters ULPF that are 4'x4' for the Zander FFU and are rated 99.9995 at mpps -.39 micron 9 Walk on Fill panels rated to 1500 lbs 4x4 configuration 18 Walk on Fill panels rated to 1500 lbs 2x4 configuration 9 Guth sealed clean room high intensity lights 9 Gordon T gasketed 2" walk on grid system for 576 sf 576 Support threaded rods for the grid system for drop height of up to 10' below your existing ceiling 36 . Here is the flow for this 576 square foot room. Description Flow Total Flow CFM 12,789 Total Flow LFM 14,400 Changes/min 8' tall inside room 187.5 changes/hr 10' tall inside room 150 Since this grid system uses very high quality filters the room will easily surpass class 1000 performance. This lot is the entire grid system including filtration, lights, fills, perfs, grid and grid hangers. The buyer of this system will pay the actual shipping costs we will load at no charge. We can build custom kits of any size up to 40,000 squa…
