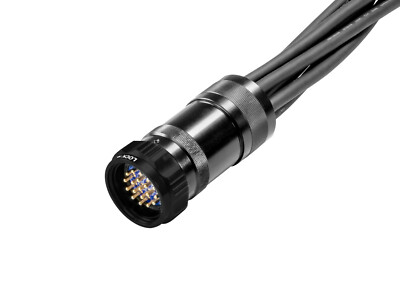

SOCAPEX 19 PIN to 5ft 6 Channel Stage Pin Female connectors Breakout Cable - $300 - (Conway, AR)
This Listing Is For A Brand New Elite Core SOCAPEX 19 PIN to 5ft 6 Channel Stage Pin Female connectors Breakout Cable Socapex Breakout Connectors: Phase3 spider SHOWSAFE series Socapex 19 Pin to 6 Stage Pin Female Connectors (5ft) These cables are hand built in the USA Technical Parameters: • UL Approved to UL1977 Standard • Amphenol Socapex SL419 Compatible •19 Pin connectors are all rated 25A • Multi-point Gold Plated Contacts • Integral Insulation Sleeves • M40 metric cable glands for multicore socapex cable pinout (bush sizes 10-32mm) • Socapex Breakout Wire sizes from 12 to 14 AWG (1.5-2.5mm) • IP67 ingress protection when mated • Temperature Rating -55oC to +125oC • Voltage Rating 600 VAC, 700 VDC max • FMLB Earth contacts • ROHS Compliant Breakout Cable: 12/3 300-Volt CU Black Flexible Portable Power SJOOW Cord Heat-, moisture- and oil-resistant EPDM rubber insulation Indoor and outdoor use Resists oil, solvents, water, flame, ozone and abrasion Highly flexible with good tensile strength, elongation and aging characteristics UL listed and CSA certified Normal 0 false false false EN-US X-NONE X-NONE
