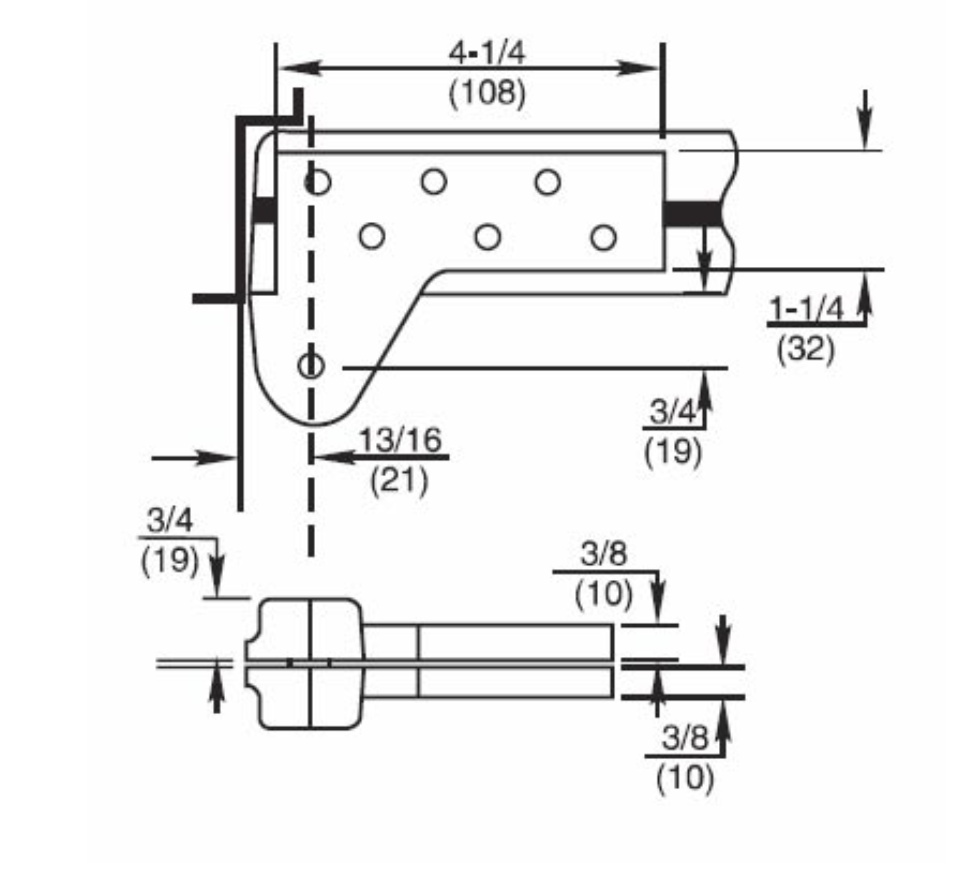

Rixon L180 626 Door Top Pivot - $50 - (Wilmington, DE)
L180 Other Thickness Door Top Pivot -Extra Length Pins Available in Extra Order Installation Instruction Templates Product Brochure APPLICATION ? Lead-Lined / Heavy / High Traffic Doors ? Full Mortise ? Non -Handed INTRODUCTION Pivot sets provide the best possible means of hanging a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability. The weight of the door is supported entirely by the bottom arm, which is directly connected to the pivot spindle. This hanging means provides several important advantages: • Fasteners on the door and frame are in shear rather than tension (as with hinges) and are less likely to pull out overtime. This creates less stress on the frame assembly, prevents door sagging and allows the door to swing with less resistance from friction. • A door supported in this manner relies on the strength of the floor to carry the weight, not the frame. This allows extremely heavy doors to be hung in an opening and allows door adjustment throughout the life of the building to compensate for settlement.
